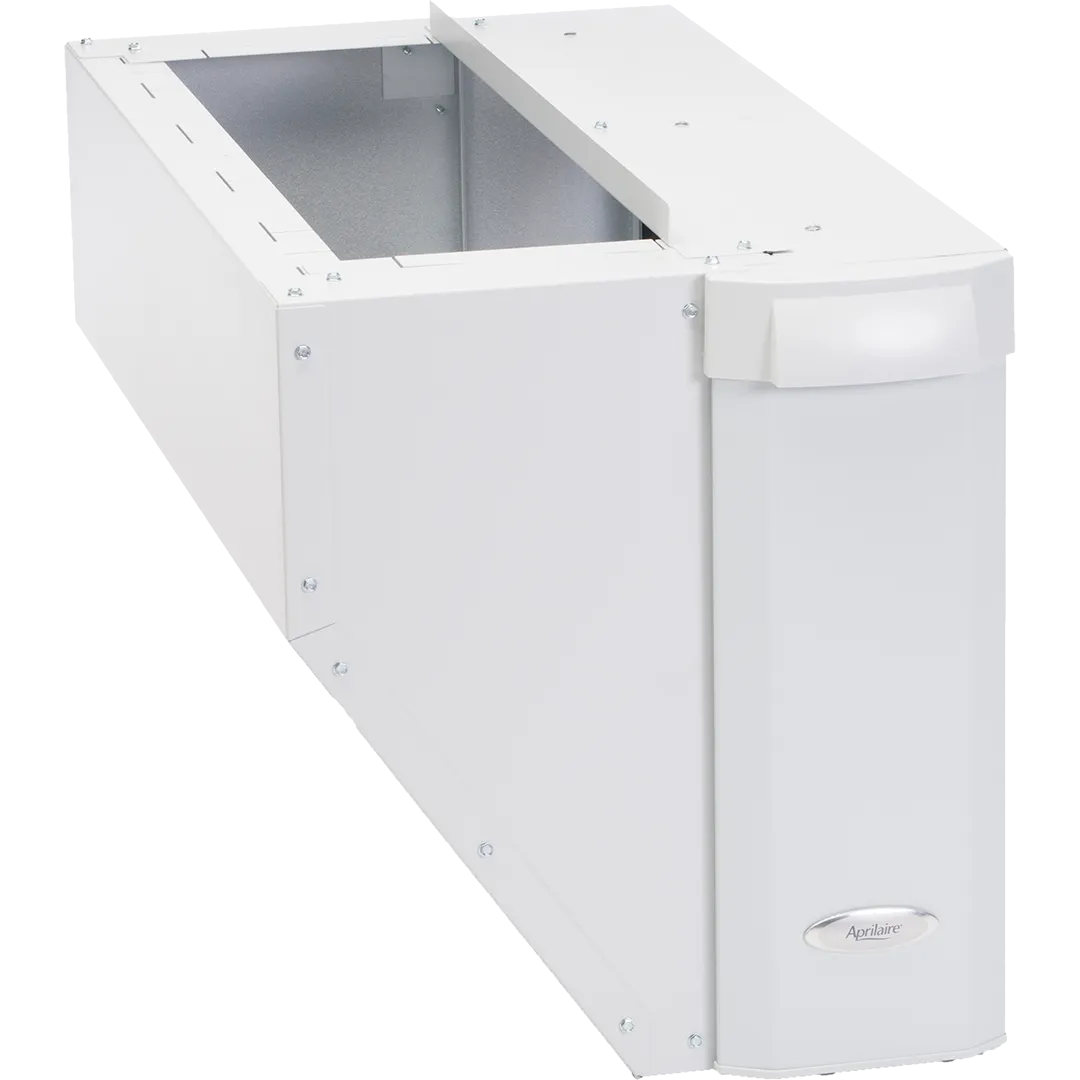

APRILAIRE Easy Install Whole-Home Air Cleaner

The APRILAIRE Easy Install Whole-Home Air Cleaner (Model 1610) is the ideal HVAC upgrade for systems with an upflow return. Designed for quick, hassle-free installation, it features a built-in duct and adjustable return drop (8" x 20" to 10" x 24")—eliminating the need for field-formed transitions. With its Self-Seal™ design and MERV 11 filter (upgradeable to MERV 13), it ensures optimal air cleaning by reducing air bypass. Built from corrosion-resistant, heavy-gauge pre-painted steel, this durable unit offers superior dust protection for your HVAC system and efficient whole-home air filtration.

FEATURES

Self Seal design reduces bypass, increases performance
Return drop opening easily adjusted to fit sizes from 8" x 20" to 10" x 24"
Built-in duct eliminates field forming transitions
Fits left or right side returns
Reduced installation time — no need for field-formed transitions
Requires little or no cold air return re-positioning
Protects HVAC equipment from dust buildup
Superior performance over one inch panel filters and four inch cartridge filters
Ships with MERV 11 filter and cnn be upgraded to MERV 13 filter with simple media change
Easily converts to right or left side by reversing door and back plate
Includes metal tabs for securing the air cleaner frame to the furnace or air handler
Simple annual media replacement
Made of corrosion-resistant heavy gauge pre-painted steel
Proprietary door design and Self-Seal™ media virtually eliminates air bypass for optimal performance
