Radiant Heating Parts
ITEM NUMBER : CB125 | Radiant Heating Parts
Hydraulic separators are used to isolate primary circuit flow from secondary circuit flow. Great for heating and snow melting applications with multiple temperature zones.
FEATURES
- Equipped with Calvent automatic air vent
- Painted steel frame
- Thermometer port
- Maximum operating pressure: 150 PSI
- Maximum operating temperature with insulation: 100°C (212°F)
- Maximum operating temperature without insulation: 132°C (270°F)
- Adapted fluids: water and up to 50% glycol solution

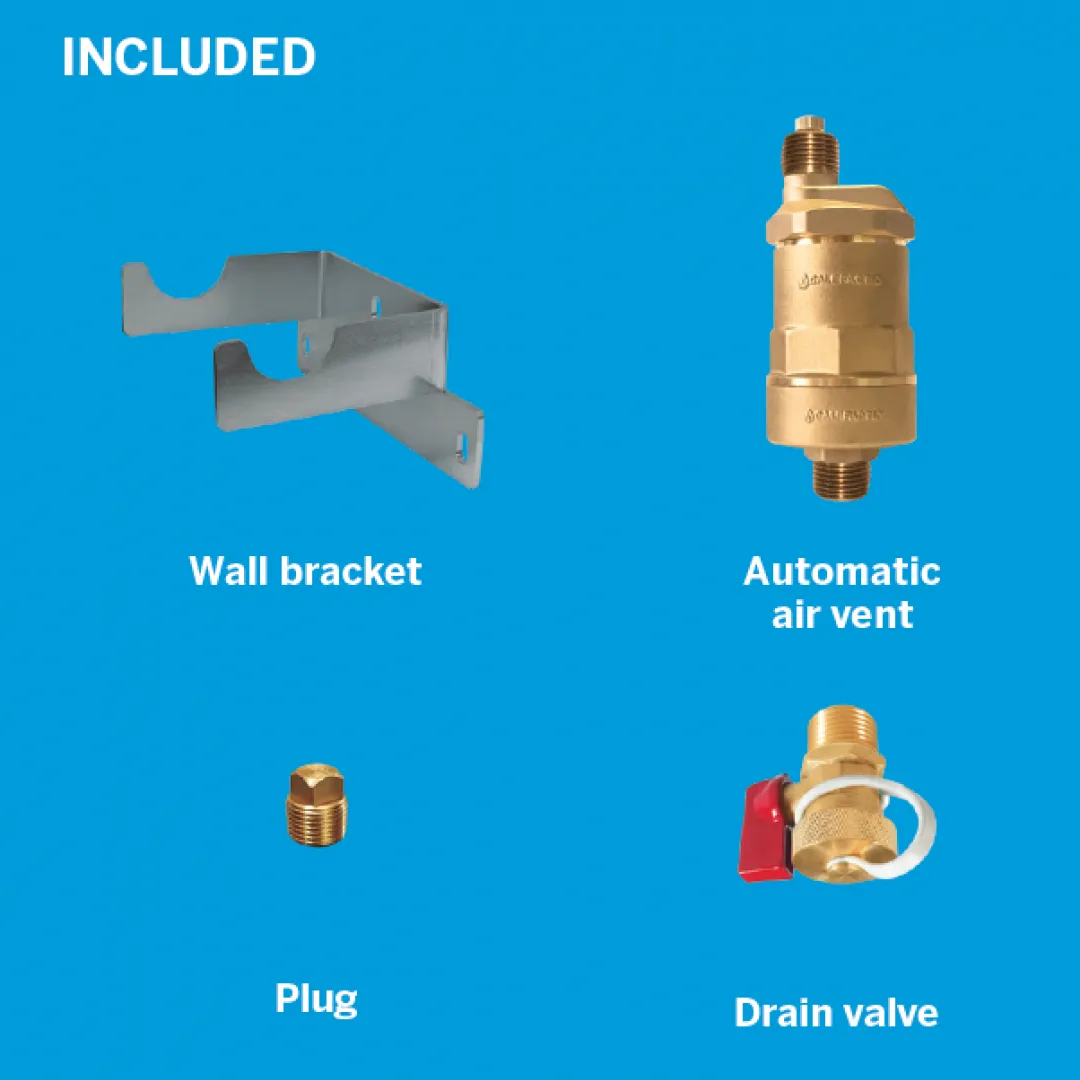

- Included - Drain Valve, Automatic Air Vent, Wall Bracket, Plug
| PART NUMBER | SIZE | CONNECTION TYPE | ||
| CB100 | 1" | NPT |
|
|
| CB125 | 1-1/4" | NPT |
|
|
| CB150 | 1-1/2" | NPT |
|
|
| CB200 | 2" | NPT |
|
