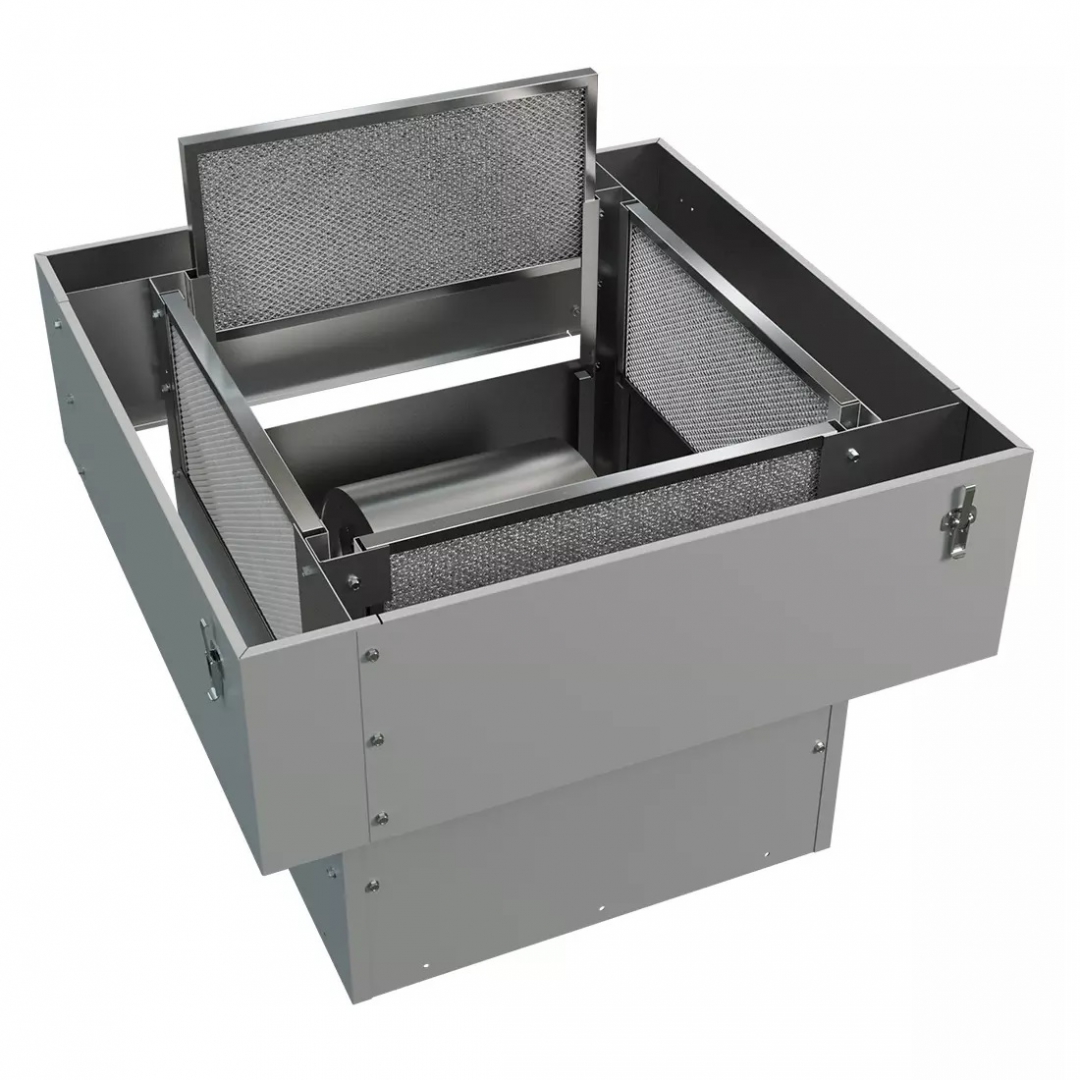

DELHI 700 Series Filtered Fresh Air Supply Units

The DELHI 700 Series Filtered Fresh Air Supply Units provide efficient tempered air solutions by adapting to heating or cooling coils for various applications. The flexible forward-curved belt drive blowers operate at low speed and noise levels, ensuring quiet performance. Designed for easy maintenance, the latched top cover provides access to four permanent, washable aluminum filters, motor, and drive. The motor is protected by outside air flow for extended life, while the top is insulated with a 1/2" fiberglass flexible duct liner for optimal energy efficiency. Perfect for both residential and commercial applications, this unit combines performance, durability, and quiet operation.

FEATURES

Heavy duty ball bearings suitable for - 65º to + 250º F
Latched top cover provides convenient service access to 4 filters, motor and drive
Flexible forward curved belt drive blowers operate at low speed and noise levels
Blower is rubber mounted for quiet operation
Four permanent, washable, aluminum filters have large surface area for efficient filtration
Outside air flows over the motor to increase motor life
Top insulated with 1/2" fiberglass flexible duct liner
Motor mounting hardware supplied with all units

Assembly Service Available

If you require a fan assembled with motor and drives please check the box and a Metalworks representative will call you.

Thank you for your request. Our representative will call you as soon as possible.

CANARM DELHI 700 Series Filtered Fresh Air Supply Units

	PART NUMBER	SHAFT SIZE	Max HP	CFM @ 0.5" SP	CFM @ 2" SP	UNIT SIZE (LxWxH)	Vaughan
	710	SHAFT SIZE3/4"	Max HP1/2	CFM @ 0.5" SP3200	CFM @ 2" SP2300	UNIT SIZE (LxWxH)38.50" x 38.50" x 28.25"	QTYout of stock ADD TO CART
